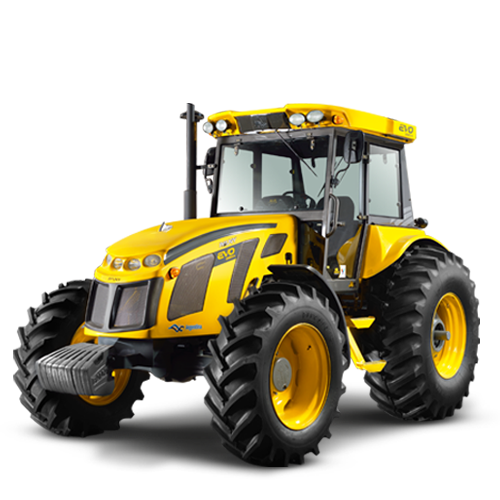

ASSISTED 230A

Evo Line

EVO line offers an ambitious range of tractors and agricultural machinery, with an optimal quality/price ratio, so that each producer can have the strength of a Pauny in their field.

Tractors with Assisted Traction, Articulated Double Traction and Total Traction P-Trac, with variants of power and motor, cover a wide range of requirements for large extensions of field, with low consumption per hectare worked and maximum tractive force for better performance.

More about this product

080077 PAUNY (72869)

Technical specifications

Engine

Brand/Model:
CUMMINS / 6B 5.9

Power:

Engine power at rated speed kw (HP):
89 (120)

Type:
Diesel 4 times.

Maximum rated speed (rpm):
2300

Maximum torque (Nm):
42.9 (421)

Maximum torque pattern (rpm):
1500

Number of cylinders:
6 aligned.

Displacement (cm3):
5.883

Aspiration:
Normal.

Diameter / Stroke (mm):
102 / 120

Compression ratio:
17,5:1

Injection:
Direct. Rotating pump.

Cooling system:
By liquid under pressure, with thermostat.

Starting system:
Electric 12 V, with ignition key, safety switch and fuse.

Torque reserve (%):

Minimum consumption (g / kw.h):

Lubrication:

Air filter:

Exhaust system:

Transmission

Type:
Helical gears in constant shot. With synchronized coupling by external gears. Manual operation by means of two (2) levers.

Gearbox:
Number of speeds: five (5) forward gears and one (1) reverse gear, which combined with the low and high range total ten (10) forward gears and two (2) reverse gears.

Front axle:
Epicyclic-type final reduction of straight gears. Number of satellites: three (3). Transmission ratio: 6.923:1. Ring gear and pinion ratio 3.10:1. Number of satellites: four (4).

Rear axle:
Epicyclic-type final reduction of straight gears. Number of satellites: 3 (three). Transmission ratio: 6:1. Ring gear and pinion ratio: 5.5:1 (8/44). Number of satellites: four (4). Differential lock with pedal drive and automatic unlocking.

Pressure of the steering system (mpa):

Speeds:

Brand:

Model:

Differential lock (NoSPin):

Torque ratio:

Maximum input speed (r.p.m.):

Maximum allowable engine torque (Nm):

Clutch

Type:
Dual disc dry friction, with independent drive.

Disc diameter: PTO / Transmission
13'' (330 mm). Pedal mechanical drive. 15'' (380 mm). Pedal mechanical drive.

Hydraulic System

Type:
Open center, with external gear pump.

Maximum flow rate (l / min):
74 at 2300 rpm of the engine.

Flow rate (l / min):

Maximum working pressure (bar):
180

Working pressure (Mpa):

Steering system pressure (Mpa):

Relief pressure:

Remote control:
2 outputs for double-effect cylinders. / Optional: 3 outputs.

Fluid reservoir:
Independient.

Steering hydraulics:

Hydraulic cylinders:

Filter system:
With metal mesh filter at the outlet of the reservoir and 10 micron paper filter in the return.

Valve bank:

Electric System

Voltage (V):
12 V, with negative to ground.

Alternator (A):
12 V, 55 A, with built-in voltage regulator.

Battery (Ah):
1 (one) of 12 V and 180 Ah.

Power Take-Off

Type:
Connection totally independent of the transmission. Rated speed 540 rpm / Opt. 1000 rpm.

PTO Speed:
540 rpm.

Drawbar:

Capacities and Weight

Fuel tank (reservoir) (l):
170 / Qty. 2 interconnected.

Tank with front PTO:

Auxiliary tank:

Hydraulic fluid tank (l):
82

Crankcase included oil filter (l):
12,5

Gearbox (l):

Rear differential (l):

Gearbox and rear differential (l):

Front differential (l):
11

Transmission (l):
90 / Included oil filter.

Transmission (kg):

Transmission and rear differential (l):

Front axle (differential / hubs):

Weight without ballast in start command (kg):
5.224

Weight with ballast with water in the covers and full fuel tank (kg):
6,280 / Rear tire 18.4 x 34 and 8 front count.

Nominal load (kg):

Operating weight (kg):

Bucket capacity (l):

Traction cycle time:

Maximum tractive force (kN):

Maximum displacement force:

Front wheel hub each (l):

Lubricant capacity (without radiator) (l):

Base machine weight (kg):

Front axle (kg):

Rear axle (kg):

Maximum weight (kg):

Total cycle time (s):

Articulation and Pivoting

Type:

Steering angle (°):

Articulation angle (°):

Minimum turning radius (mm):

Total pivoting angle (°):

Brakes

Service brakes:
Oil immersed disc, with independent or simultaneous pedal drive.

Parking brakes:
Commanded by manual lever, which acts on the service brake.

Traction

Simple / Double:
Double.

Tire Sizes

Front / Rear:
12,4 x 28 / 14,9 x 26 / 18,4 x 34 / 23,1 x 30

Front :

Rear:

Type:

Tires:

Rims:

Chassis

Type of chassis:

Operator´s Station

Type:

Steering:
Sensitive hydrostatic.

Cabin:
Pressurized, which prevents the entry of particles. With A/C cold/heat. Steering column: adjustable in height and depth, with two breaks, to obtain the best driving position.

Characteristics of the steering column:

Board:
Compact analog, with analog indicators of: engine rpm, oil pressure, cooling temperature, fuel level. Light indications: low oil pressure, clogged air filter, over coolant temperature, low fuel level, triggered hand brake, alternator failure, power take-off, lights.

Light switch:
Hermetic single control keyboard.

Seat:
Anatomical, with horizontal and vertical regulation by weight of the operator.

Theoretical Speeds

Dimensions

Axle spacing (mm):
2780

Total dimension (mm):

Total length (mm):
4572

Maximum height (mm):
3015

Max. dumping height (mm):

Dumping reach (mm):

Ground clearance (mm):
440

Height at the steering (mm):
2070

Minimum wheel track (mm):

Maximum wheel track (mm):

Maximum single wheel track (mm):

Front wheel track (mm):
2000 / 2100

Rear wheel track (mm):
1800 / 2200

Wheel track (mm):

Maximum width (mm):

Total width with single wheels (mm):

Total width with dual (mm):

Max single / dual width (mm):
2390 / 3410

Length with bucket (mm):

Total width (mm):

Maximum single / dual wheel track (mm):

Maximum wheel track with dual (mm):
2940

Maximum height at the steering (mm):

Travel Speed

Travel speed - Forward km/h):

Travel speed - Reverse (km/h):

Axles

Front axle:

Rear axle:

Front Loader Capacities

Bucket capacity - struck (m3):

Bucket capacity - heaped (m3):

Loading reach (m):

Dumping height (m):

Total operating height (m):

Turning angle (°):

Dumping angle (°):

Backhoe Capacities

Reach from central articulation (m):

Loading reach (m):

Operating height (m):

Digging depth (m):

Digging depth with flat bottom (m):

Arm folding force (kgf):

Turning arc (°):

Bucket penetration force (kgf):

Standard bucket width:

Loading height (m):

Operational Data

Transport height (m):

Transport width (m):

Transport length (m):

Axle spacing (m):

Cabin height (m):

Operating weight (kg):

Lights

Front Lights:

Rear Lights:

Attachment

Hydraulic lift
(Three point hitch):

Drawbar:

Category:

Lower Boards:

Other

Traction:

Ballast:

Standard Equipment

Backup Camera:

Hydraulic decoupling of the bucket from the cab:

Lights for night work:

Air conditioning:

Third hydraulic way for bale spear:

Tandem

Type:

Thickness (mm):

Chain drive step (mm):

Axle spacing (mm):

Oscillation (°):

Type of bearings:

Moldboard

Tipo:

Dimensiones (mm):

Presión máxima de la hoja (eq. estándar)(kg):

Alcance máximo por fuera de las ruedas (mm):

Ángulo máximo para corte de talud (°):

Operaciones:

Elevación de la cuchilla:

Desplazamiento lateral:

Inclinación de la hoja:

Máxima elevación sobre el suelo (mm):

Desplazamiento lat. del centro del circulo (mm):

Desplazamiento lat. de la vertedera (mm):

Cantoneras:

Rieles:

Scarifier

Number of teeth:

Working width (mm):

Drawbar:

Ripper:

Circle

Type:

External diameter (mm):

Rotation (continuous) (°):

Supports:

Thickness (mm):

Circle drive:

Frontal excavator blade

Type:

Compactor wheels

Type:

Extra Equipment

Mud scraper kit:

Full lower enclosure:

Hydraulic tank enclosure:

Optional Elements

3 point hydraulic lift:
Manual or automatic driver.

Rear hitch for trailer:
Yes.

Air conditioner:

Sunshade roof:

Closed cabin:

Hydraulic elevator:

Counterweight:
8

Hydraulic equipment:

Drawbar:
