NEOTERRA S180VF
Neoterra Line
With the strength and dynamics that characterize it, Pauny launches its Neo Terra line. A new generation of specialized tractors, which provides specific solutions for winery and fruit & vegetable producers.They have an ideal minimum width for specialized jobs in narrow spaces, such as vineyards, olive trees, citrus fruits, greenhouses, and others.
The operative versatility, the diverse configurations and the ergonomic and driving comforts make these tractors indispensable machines to make a qualitative and productive difference. Undoubtedly, a new choice of the majority.
More about this product
Technical specifications
Engine
Brand/Model:
MWM International MS 4.1
Power:
Engine power at rated speed kw (HP):
61 (83)
Type:
Diesel 4 times.
Maximum rated speed (rpm):
2200
Maximum torque (Nm):
288
Maximum torque pattern (rpm):
1400
Number of cylinders:
4 aligned.
Displacement (cm3):
4070
Aspiration:
Natural.
Diameter / Stroke (mm):
101 / 127
Compression ratio:
16:1
Injection:
Direct.
Cooling system:
By liquid under pressure, with thermostat. With deaeration system.
Starting system:
Electric 12 V, with ignition key, safety switch and fuse.
Torque reserve (%):
Minimum consumption (g / kw.h):
Lubrication:
Air filter:
Exhaust system:
Transmission
Type:
Carraro. Helical gears in constant shot. Synchronized coupling. Forward-backward.
Gearbox:
Number of speeds: 12 forward and 12 reverse. Manual operation by means of three (3) levers: one to select the four gears (1st, 2nd, 3rd and 4th); another to select the high, medium and low and the third to select forward-back.
Front axle:
Conical-helical group, with external epicyclic reducer (inside the hammers).
Rear axle:
Conical-helical group, with internal epicyclic reducer (next to the differential gear) and output for front-wheel drive.
Pressure of the steering system (mpa):
Speeds:
Brand:
Model:
Differential lock (NoSPin):
Torque ratio:
Maximum input speed (r.p.m.):
Maximum allowable engine torque (Nm):
Clutch
Type:
Dry friction, with independent pedal mechanical drive.
Disc diameter: PTO / Transmission
310 / 310
Hydraulic System
Type:
Open center. With gear pump and two-bodies hydraulic valve.
Maximum flow rate (l / min):
55
Flow rate (l / min):
Maximum working pressure (bar):
160
Working pressure (Mpa):
Steering system pressure (Mpa):
Relief pressure:
Hydraulic outlets:
2 outputs with quick coupling.
Fluid reservoir:
Uses the same transmission oil.
Steering hydraulics:
Hydraulic cylinders:
Filter system:
With magneto-mechanical filter of metallic mesh in suction and cellulose filter of 10 microns in return.
Valve bank:
Electric System
Voltage (V):
12 V, with negative to ground.
Alternator (A):
12 V, 60 A, with built-in voltage regulator.
Battery (Ah):
One (1) of 12 V and 120 Ah.
Power Take-Off
Type:
Manual mechanical drive. Rated speed 540/540E rpm.
PTO Speed:
540 rpm.
Drawbar:
Capacities and Weight
Fuel tank (reservoir) (l):
42
Tank with front PTO:
Auxiliary tank:
Hydraulic fluid tank (l):
Crankcase included oil filter (l):
8.1
Gearbox (l):
Rear differential (l):
Gearbox and rear differential (l):
42
Front differential (l):
6.5
Transmission (l):
Transmission (kg):
Transmission and rear differential (l):
Front axle (differential / hubs):
Weight without ballast in start command (kg):
2950
Weight with ballast with water in the covers and full fuel tank (kg):
3630
Nominal load (kg):
Operating weight (kg):
Bucket capacity (l):
Traction cycle time:
Maximum tractive force (kN):
Maximum displacement force:
Front wheel hub each (l):
0.6
Lubricant capacity (without radiator) (l):
Base machine weight (kg):
Front axle (kg):
Rear axle (kg):
Maximum weight (kg):
Total cycle time (s):
Articulation and Pivoting
Type:
Steering angle (°):
Articulation angle (°):
Minimum turning radius (mm):
Total pivoting angle (°):
Brakes
Service brakes:
Wet disc in transmission, with hydraulic pedal drive.
Parking brakes:
Commanded manually by lever.
Traction
Simple / Double:
Double.
Tire Sizes
Front / Rear:
Front :
6.5 x 16
Rear:
12.4 x 24
Type:
Tires:
Rims:
Chassis
Type of chassis:
Operator´s Station
Type:
Steering:
Sensitive hydrostatics on the front axle.
Cabin:
Characteristics of the steering column:
Board:
Compact analog, with analog indicators of: engine rpm, cooling temperature, fuel level. Light indications: low oil pressure, clogged air filter, over coolant temperature, low fuel level, triggered hand brake, alternator failure, power take-off activated, lights.
Light switch:
Single control and keys on the steering column.
Seat:
Anatomical, with horizontal and vertical regulation by weight of the operator.
Theoretical Speeds

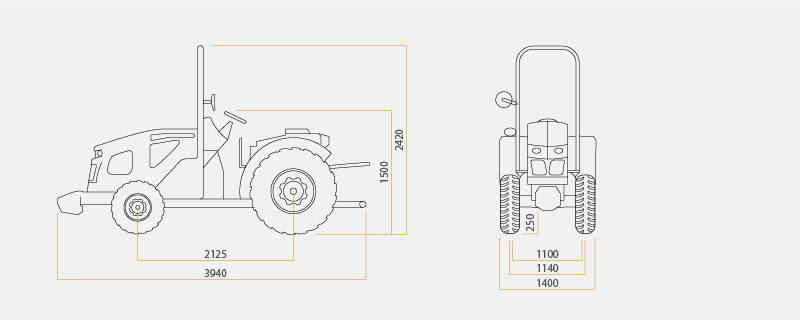

Dimensions
Axle spacing (mm):
2125
Total dimension (mm):
Total length (mm):
3846
Maximum height (mm):
2378 (with lifted overturn)
Max. dumping height (mm):
Dumping reach (mm):
Ground clearance (mm):
261
Height at the steering (mm):
Minimum wheel track (mm):
Maximum wheel track (mm):
Maximum single wheel track (mm):
Front wheel track (mm):
1125
Rear wheel track (mm):
1001
Wheel track (mm):
Maximum width (mm):
1316
Total width with single wheels (mm):
Total width with dual (mm):
Max single / dual width (mm):
Length with bucket (mm):
Total width (mm):
Maximum single / dual wheel track (mm):
Maximum wheel track with dual (mm):
Maximum height at the steering (mm):
1439
Travel Speed
Travel speed - Forward km/h):
Travel speed - Reverse (km/h):
Axles
Front axle:
Rear axle:
Front Loader Capacities
Bucket capacity - struck (m3):
Bucket capacity - heaped (m3):
Loading reach (m):
Dumping height (m):
Total operating height (m):
Turning angle (°):
Dumping angle (°):
Backhoe Capacities
Reach from central articulation (m):
Loading reach (m):
Operating height (m):
Digging depth (m):
Digging depth with flat bottom (m):
Arm folding force (kgf):
Turning arc (°):
Bucket penetration force (kgf):
Standard bucket width:
Loading height (m):
Operational Data
Transport height (m):
Transport width (m):
Transport length (m):
Axle spacing (m):
Cabin height (m):
Operating weight (kg):
Lights
Front Lights:
Rear Lights:
Attachment
Hydraulic lift
(Three point hitch):
(Three point hitch):
Category II, with electronic control of depth and effort.
Drawbar:
Rear. For trailer. With 2 height and 2 depth regulations.
Category:
Lower Boards:
Other
Traction:
Ballast:
Standard Equipment
Backup Camera:
Hydraulic decoupling of the bucket from the cab:
Lights for night work:
Air conditioning:
Third hydraulic way for bale spear:
Hydraulic joystick:
Tandem
Type:
Thickness (mm):
Chain drive step (mm):
Axle spacing (mm):
Oscillation (°):
Type of bearings:
Moldboard
Tipo:
Dimensiones (mm):
Presión máxima de la hoja (eq. estándar)(kg):
Alcance máximo por fuera de las ruedas (mm):
Ángulo máximo para corte de talud (°):
Operaciones:
Elevación de la cuchilla:
Desplazamiento lateral:
Inclinación de la hoja:
Máxima elevación sobre el suelo (mm):
Desplazamiento lat. del centro del circulo (mm):
Desplazamiento lat. de la vertedera (mm):
Cantoneras:
Rieles:
Scarifier
Number of teeth:
Working width (mm):
Drawbar:
Ripper:
Circle
Type:
External diameter (mm):
Rotation (continuous) (°):
Supports:
Thickness (mm):
Circle drive:
Frontal excavator blade
Type:
Compactor wheels
Type:
Extra Equipment
Mud scraper kit:
Full lower enclosure:
Hydraulic tank enclosure:
Optional Elements
3 point hydraulic lift:
Rear hitch for trailer:
Air conditioner:
Sunshade roof:
Closed cabin:
Hydraulic elevator:
Counterweight:
Hydraulic equipment:
Drawbar:
