ARTICULATED 540C
Bravo Line
Add to your field the advantages of a BRAVO, the Pauny
line with the highest hydraulic capacity and efficiency in fuel consumption.
Specially developed for direct sowing, pneumatic, with variable flow. It
incorporates state-of-the-art tools that allow minimum compaction with greater
traction capacity.
Its modern fully pressurized cabin, with panoramic vision and equipped for
maximum comfort and operator safety, optimizes the excellent field work.
More about this product
Technical specifications
Engine
Brand/Model:
Cummins / 6CTA 8.3
Power:
Engine power at rated speed kw (HP):
180 (240)
Type:
Diesel 4 times.
Maximum rated speed (rpm):
2200
Maximum torque (Nm):
882 (89,90)
Maximum torque pattern (rpm):
1500
Number of cylinders:
6 aligned.
Displacement (cm3):
8267
Aspiration:
Turbo supercharged post-cooled.
Diameter / Stroke (mm):
114 / 135
Compression ratio:
16,5:1
Injection:
Direct. Linear pump.
Cooling system:
By liquid under pressure, with thermostat. With deaeration system.
Starting system:
Electric 12 V, with ignition key, safety switch and fuse.
Torque reserve (%):
Minimum consumption (g / kw.h):
Lubrication:
Air filter:
Exhaust system:
Transmission
Type:
Helical gears in constant shot, with four (4) trees arranged in cascade. Semi-synchronized coupling by internal gears of manual operation by means of three (3) levers.
Gearbox:
Number of speeds: three (3) forward gears and one (1) reverse gear, which combined with the four ranges total twelve (12) forward gears and four (4) reverse gears.
Front axle:
Epicyclic-type final reduction. Internal, next to the differential gear. Number of satellites: three (3). Transmission ratio: 6:1. Ring gear and conical pinion ratio: 5.5:1.
Rear axle:
Epicyclic-type final reduction. Internal, next to the differential gear. Number of satellites: three (3). Transmission ratio: 6:1. Ring gear and conical pinion ratio: 5.5:1.
Pressure of the steering system (mpa):
Speeds:
Brand:
Model:
Differential lock (NoSPin):
Torque ratio:
Maximum input speed (r.p.m.):
Maximum allowable engine torque (Nm):
Clutch
Type:
Dry friction type, with pedal mechanical drive.
Disc diameter: PTO / Transmission
15'' (380 mm) single disc.
Hydraulic System
Type:
Hidro Max hydraulic system. Closed center, with 2 piston pumps of 63 m³/rev.
Maximum flow rate (l / min):
295 @ 2200 rpm.
Flow rate (l / min):
Maximum working pressure (bar):
180
Working pressure (Mpa):
Steering system pressure (Mpa):
Relief pressure:
Hydraulic outlets:
4 outputs for double-effect cylinders + 1 for hydraulic engines.
Fluid reservoir:
Steering hydraulics:
Hydraulic cylinders:
Filter system:
With metallic mesh filter at the outlet of the reservoir and 10 micron paper filter in the return.
Valve bank:
Electric System
Voltage (V):
12 V, with negative to ground.
Alternator (A):
12 V, 130 A.
Battery (Ah):
One (1) of 12 V and 180 Ah.
Power Take-Off
Type:
Manual mechanical drive. Rated speed 540 rpm. / Opt.: 1000 rpm.
PTO Speed:
540 rpm.
Drawbar:
Capacities and Weight
Fuel tank (reservoir) (l):
521
Tank with front PTO:
Auxiliary tank:
Hydraulic fluid tank (l):
200
Crankcase included oil filter (l):
20
Gearbox (l):
20
Rear differential (l):
55
Gearbox and rear differential (l):
Front differential (l):
45
Transmission (l):
Transmission (kg):
Transmission and rear differential (l):
Front axle (differential / hubs):
Weight without ballast in start command (kg):
9,010
Weight with ballast with water in the covers and full fuel tank (kg):
13,010
Nominal load (kg):
Operating weight (kg):
Bucket capacity (l):
Traction cycle time:
Maximum tractive force (kN):
Maximum displacement force:
Front wheel hub each (l):
Lubricant capacity (without radiator) (l):
Base machine weight (kg):
Front axle (kg):
Rear axle (kg):
Maximum weight (kg):
Total cycle time (s):
Articulation and Pivoting
Type:
Through three-point support; ball joint with articulation and pivoting.
Steering angle (°):
70° (± 35° from the center)
Articulation angle (°):
Minimum turning radius (mm):
Total pivoting angle (°):
30° (± 15° from the center)
Brakes
Service brakes:
Disc on transmission output, with hydraulic drive.
Parking brakes:
Commanded by lever on the service brake.
Traction
Simple / Double:
Double.
Tire Sizes
Front / Rear:
460/85R34 / 460/85R38 / 18.4 x 34 simple and double / 18.4 x 38 simple and double / 23.1 x 30 (12 telas) simple and double / 24.5 x 32 (12 telas) simple.
Front :
Rear:
Type:
Tires:
Rims:
Chassis
Type of chassis:
Operator´s Station
Type:
Steering:
Sensitive, hydrostatic, on the joint.
Cabin:
Anti-roll, hermetic and soundproof, mounted on anti-vibration rubber blocks. With A/C cold/heat.
Characteristics of the steering column:
Board:
Compact analog, with analog indicators of: engine rpm, cooling temperature, fuel level. Light indications: low oil pressure, clogged air filter, over coolant temperature, low fuel level, triggered hand brake, alternator failure, power take-off activated, lights.
Light switch:
Hermetic single control keyboard.
Seat:
Anatomical, with horizontal regulation by weight of the operator.

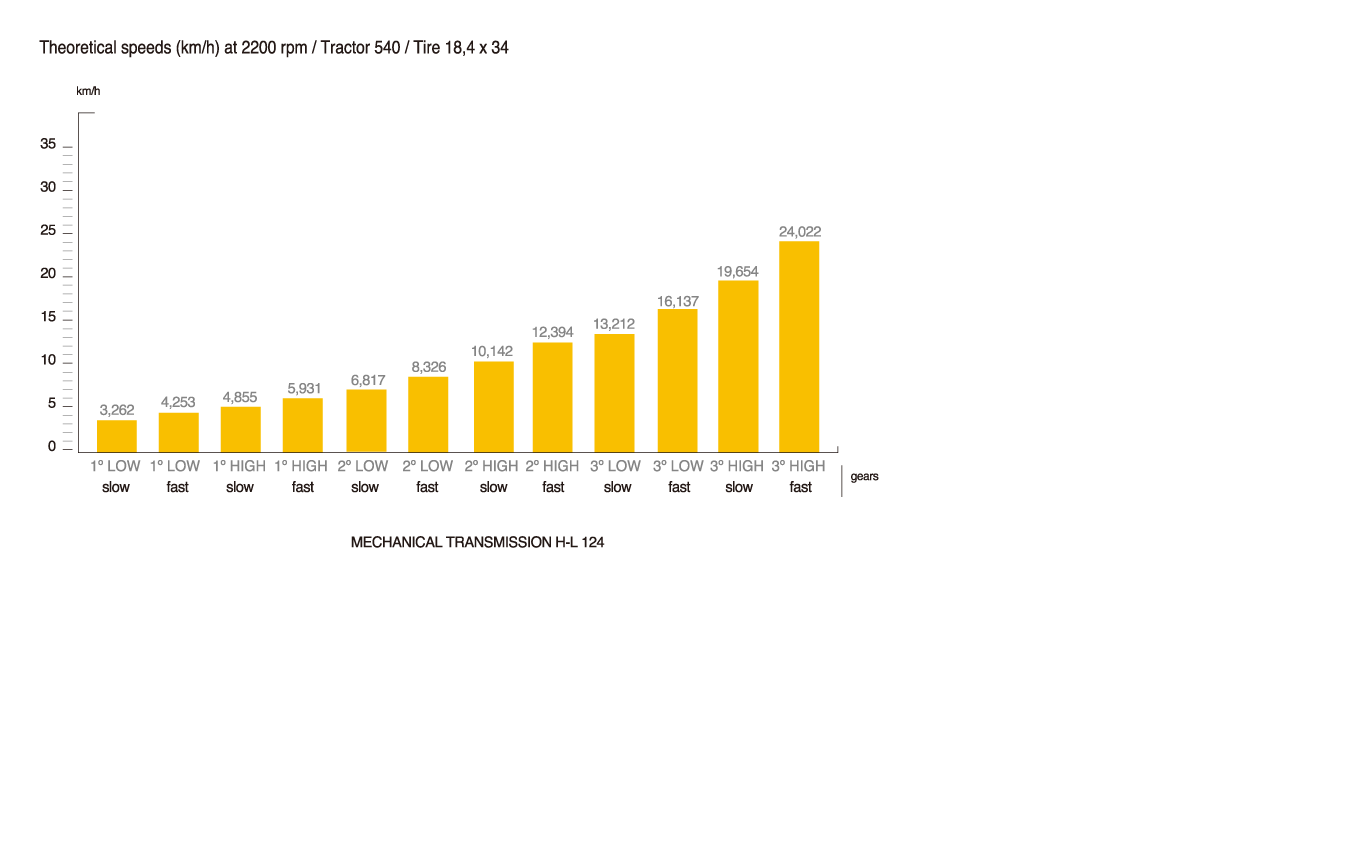

Theoretical Speeds

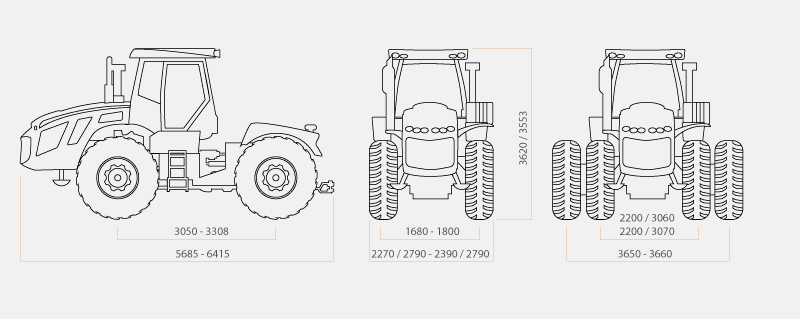

Dimensions
Axle spacing (mm):
3050
Total dimension (mm):
Total length (mm):
5685
Maximum height (mm):
3620
Max. dumping height (mm):
Dumping reach (mm):
Ground clearance (mm):
550
Height at the steering (mm):
Minimum wheel track (mm):
1680
Maximum wheel track (mm):
Maximum single wheel track (mm):
Front wheel track (mm):
Rear wheel track (mm):
Wheel track (mm):
Maximum width (mm):
Total width with single wheels (mm):
2270 / 2790
Total width with dual (mm):
3650
Max single / dual width (mm):
Length with bucket (mm):
Total width (mm):
Maximum single / dual wheel track (mm):
2200 / 3060
Maximum wheel track with dual (mm):
Maximum height at the steering (mm):
Travel Speed
Travel speed - Forward km/h):
Travel speed - Reverse (km/h):
Axles
Front axle:
Rear axle:
Front Loader Capacities
Bucket capacity - struck (m3):
Bucket capacity - heaped (m3):
Loading reach (m):
Dumping height (m):
Total operating height (m):
Turning angle (°):
Dumping angle (°):
Backhoe Capacities
Reach from central articulation (m):
Loading reach (m):
Operating height (m):
Digging depth (m):
Digging depth with flat bottom (m):
Arm folding force (kgf):
Turning arc (°):
Bucket penetration force (kgf):
Standard bucket width:
Loading height (m):
Operational Data
Transport height (m):
Transport width (m):
Transport length (m):
Axle spacing (m):
Cabin height (m):
Operating weight (kg):
Lights
Front Lights:
Rear Lights:
Attachment
Hydraulic lift
(Three point hitch):
(Three point hitch):
Drawbar:
Category:
Lower Boards:
Other
Traction:
Ballast:
Standard Equipment
Backup Camera:
Hydraulic decoupling of the bucket from the cab:
Lights for night work:
Air conditioning:
Third hydraulic way for bale spear:
Hydraulic joystick:
Tandem
Type:
Thickness (mm):
Chain drive step (mm):
Axle spacing (mm):
Oscillation (°):
Type of bearings:
Moldboard
Tipo:
Dimensiones (mm):
Presión máxima de la hoja (eq. estándar)(kg):
Alcance máximo por fuera de las ruedas (mm):
Ángulo máximo para corte de talud (°):
Operaciones:
Elevación de la cuchilla:
Desplazamiento lateral:
Inclinación de la hoja:
Máxima elevación sobre el suelo (mm):
Desplazamiento lat. del centro del circulo (mm):
Desplazamiento lat. de la vertedera (mm):
Cantoneras:
Rieles:
Scarifier
Number of teeth:
Working width (mm):
Drawbar:
Ripper:
Circle
Type:
External diameter (mm):
Rotation (continuous) (°):
Supports:
Thickness (mm):
Circle drive:
Frontal excavator blade
Type:
Compactor wheels
Type:
Extra Equipment
Mud scraper kit:
Full lower enclosure:
Hydraulic tank enclosure:
Optional Elements
3 point hydraulic lift:
Rear hitch for trailer:
Air conditioner:
Sunshade roof:
Closed cabin:
Hydraulic elevator:
Counterweight:
Hydraulic equipment:
Drawbar:
