180A

Conventional Line

Conventional Pauny tractors bear the imprint of the Argentines’ most chosen brand. Solid, functional, versatile, they assist the producer with excellent performance for multiple tasks in the field, livestock and dairy.

Ideal for activities of forage, weeding, swathing, chopping, rolling, plowing, planting, harvesting, transfer, and others, they provide a high-value work tool for the development of small-scale agricultural-livestock activities.
More about this product

080077 PAUNY (72869)

Technical specifications

Engine

Brand/Model:
MWM International MS 4.1

Power:

Engine power at rated speed kw (HP):
61 (83)

Type:
Diesel 4 times.

Maximum rated speed (rpm):
2200

Maximum torque (Nm):
288

Maximum torque pattern (rpm):
1400

Number of cylinders:
4 aligned.

Displacement (cm3):
4070

Aspiration:
Natural.

Diameter / Stroke (mm):
101 / 127

Compression ratio:
16:1

Injection:
Direct.

Cooling system:
By liquid under pressure, with thermostat. With deaeration system.

Starting system:
Electric 12 V, with ignition key, safety switch and fuse.

Torque reserve (%):

Minimum consumption (g / kw.h):

Lubrication:

Air filter:

Exhaust system:

Transmission

Type:
Helical gears in constant shot. Synchronized coupling. Forward-backward.

Gearbox:
Number of speeds: 12 forward and 12 reverse. Manual operation by means of three (3) levers: one to select the four gears (1st, 2nd, 3rd and 4th); another to select the high, low and super low and the third to select forward-back.

Front axle:
Conical-helical group, with external epicyclic reducer (inside the hammers)

Rear axle:
Conical-helical group, with internal epicyclic reducer (next to the differential gear) and output for front-wheel drive.

Pressure of the steering system (mpa):

Speeds:

Brand:

Model:

Differential lock (NoSPin):

Torque ratio:

Maximum input speed (r.p.m.):

Maximum allowable engine torque (Nm):

Clutch

Type:
Dry friction, with independent pedal mechanical drive.

Disc diameter: PTO / Transmission
310 / 310

Hydraulic System

Type:
Open center. With gear pump.

Maximum flow rate (l / min):
55

Flow rate (l / min):

Maximum working pressure (bar):
160

Working pressure (Mpa):

Steering system pressure (Mpa):

Relief pressure:

Remote control:
2 outputs with quick coupling.

Fluid reservoir:
Independient.

Steering hydraulics:

Hydraulic cylinders:

Filter system:
With magneto-mechanical filter of metallic mesh in suction and cellulose filter of 10 microns in return.

Valve bank:

Electric System

Voltage (V):
12 V, with negative to ground.

Alternator (A):
12 V, 60 A, with built-in voltage regulator.

Battery (Ah):
One (1) of 12 V and 120 Ah.

Power Take-Off

Type:
Manual mechanical drive. Rated speed 540/540E rpm.

PTO Speed:
540 rpm.

Drawbar:

Capacities and Weight

Fuel tank (reservoir) (l):
92

Tank with front PTO:

Auxiliary tank:

Hydraulic fluid tank (l):

Crankcase included oil filter (l):
8,1

Gearbox (l):

Rear differential (l):

Gearbox and rear differential (l):
42

Front differential (l):
6,5

Transmission (l):

Transmission (kg):

Transmission and rear differential (l):

Front axle (differential / hubs):
92

Weight without ballast in start command (kg):
3225

Weight with ballast with water in the covers and full fuel tank (kg):
5100

Nominal load (kg):

Operating weight (kg):

Bucket capacity (l):

Traction cycle time:

Maximum tractive force (kN):

Maximum displacement force:

Front wheel hub each (l):
0,6

Lubricant capacity (without radiator) (l):

Base machine weight (kg):

Front axle (kg):

Rear axle (kg):

Maximum weight (kg):

Total cycle time (s):

Articulation and Pivoting

Type:

Steering angle (°):

Articulation angle (°):

Minimum turning radius (mm):

Total pivoting angle (°):

Brakes

Service brakes:
Wet disc in transmission, with hydraulic pedal drive.

Parking brakes:
Commanded manually by lever.

Traction

Simple / Double:
Double.

Tire Sizes

Front / Rear:

Front :
9,5 x 24 / 12,4 x 28 / 12,4 x 24

Rear:
14,9 x 28 / 13,6 x 38 / 16,9 x 30

Type:

Tires:

Rims:

Chassis

Type of chassis:

Operator´s Station

Type:

Steering:
Sensitive hydrostatics on the front axle.

Cabin:

Characteristics of the steering column:

Board:
Compact analog, with analog indicators of: engine rpm, cooling temperature, fuel level. Light indications: low oil pressure, clogged air filter, over coolant temperature, low fuel level, triggered hand brake, alternator failure, power take-off activated, lights.

Light switch:
Hermetic single control keyboard.

Seat:
Anatomical, with horizontal and vertical regulation by weight of the operator.

Theoretical Speeds

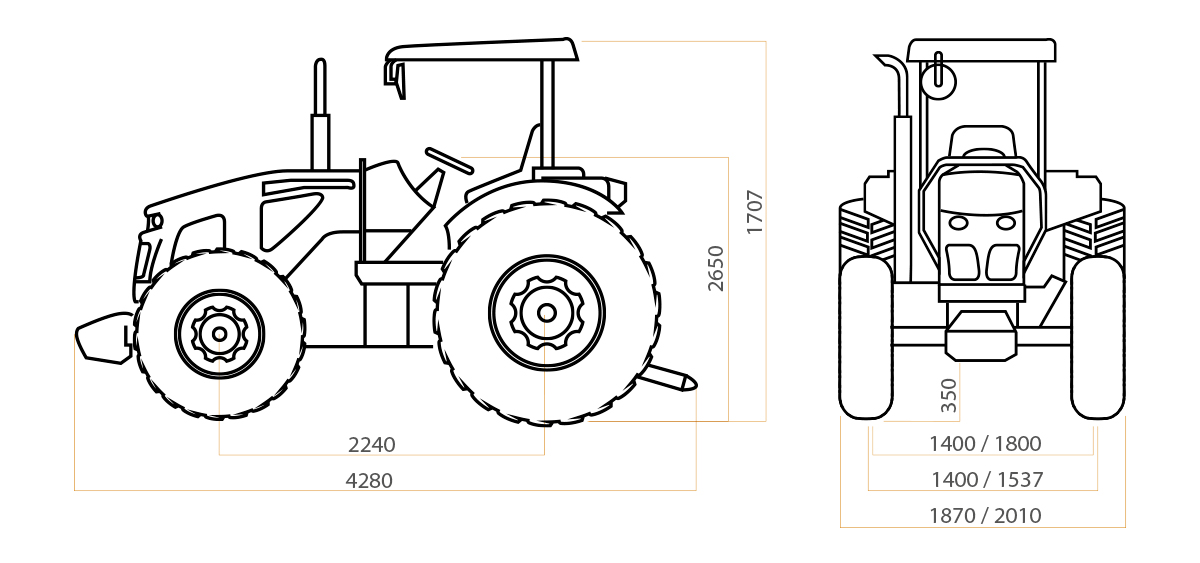

Dimensions

Axle spacing (mm):
2240

Total dimension (mm):

Total length (mm):
4280

Maximum height (mm):
2650

Max. dumping height (mm):

Dumping reach (mm):

Ground clearance (mm):
350

Height at the steering (mm):

Minimum wheel track (mm):

Maximum wheel track (mm):

Maximum single wheel track (mm):

Front wheel track (mm):
1400 / 1800

Rear wheel track (mm):
1400 / 1537

Wheel track (mm):

Maximum width (mm):
1870 / 2010

Total width with single wheels (mm):

Total width with dual (mm):

Max single / dual width (mm):

Length with bucket (mm):

Total width (mm):

Maximum single / dual wheel track (mm):

Maximum wheel track with dual (mm):

Maximum height at the steering (mm):
1707

Travel Speed

Travel speed - Forward km/h):

Travel speed - Reverse (km/h):

Axles

Front axle:

Rear axle:

Front Loader Capacities

Bucket capacity - struck (m3):

Bucket capacity - heaped (m3):

Loading reach (m):

Dumping height (m):

Total operating height (m):

Turning angle (°):

Dumping angle (°):

Backhoe Capacities

Reach from central articulation (m):

Loading reach (m):

Operating height (m):

Digging depth (m):

Digging depth with flat bottom (m):

Arm folding force (kgf):

Turning arc (°):

Bucket penetration force (kgf):

Standard bucket width:

Loading height (m):

Operational Data

Transport height (m):

Transport width (m):

Transport length (m):

Axle spacing (m):

Cabin height (m):

Operating weight (kg):

Lights

Front Lights:

Rear Lights:

Attachment

Hydraulic lift
(Three point hitch):
Category II, with electronic control of depth and effort.

Drawbar:
Rear. For trailer. With 2 height and 2 depth regulations.

Category:

Lower Boards:

Other

Traction:

Ballast:

Standard Equipment

Backup Camera:

Hydraulic decoupling of the bucket from the cab:

Lights for night work:

Air conditioning:

Third hydraulic way for bale spear:

Tandem

Type:

Thickness (mm):

Chain drive step (mm):

Axle spacing (mm):

Oscillation (°):

Type of bearings:

Moldboard

Tipo:

Dimensiones (mm):

Presión máxima de la hoja (eq. estándar)(kg):

Alcance máximo por fuera de las ruedas (mm):

Ángulo máximo para corte de talud (°):

Operaciones:

Elevación de la cuchilla:

Desplazamiento lateral:

Inclinación de la hoja:

Máxima elevación sobre el suelo (mm):

Desplazamiento lat. del centro del circulo (mm):

Desplazamiento lat. de la vertedera (mm):

Cantoneras:

Rieles:

Scarifier

Number of teeth:

Working width (mm):

Drawbar:

Ripper:

Circle

Type:

External diameter (mm):

Rotation (continuous) (°):

Supports:

Thickness (mm):

Circle drive:

Frontal excavator blade

Type:

Compactor wheels

Type:

Extra Equipment

Mud scraper kit:

Full lower enclosure:

Hydraulic tank enclosure:

Optional Elements

3 point hydraulic lift:

Rear hitch for trailer:

Air conditioner:

Sunshade roof:
Metallic structure with ceiling built in GFK.

Closed cabin:
Metallic structure, with flat glass, hermetically closed.

Hydraulic elevator:

Counterweight:

Hydraulic equipment:

Drawbar:
